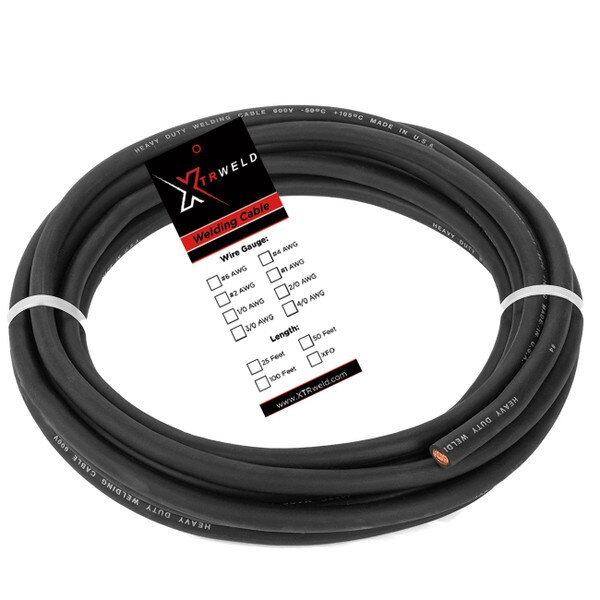

WCSN4B-50CL XTRweld Select Welding Cable, 600V, #4 AWG, 50' Cut Length
Highly durable and versatile, the cable is designed for use in stingers/whips, leads, and ground clamp welding assemblies as well as battery applications such as chargers and wire harnesses. XTRweld SELECT welding cable is SAE J1127 (#6 to 250 MCM) and RoHS compliant and manufactured in the USA.
KEY FEATURES
- Rope-lay, bunch-stranded 30 AWG SAE copper conductor
- Wrapped paper separator
- Jacketed with proprietary LSHF EPDM compound
- Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
AWG Size | #4 |
Voltage Rating | 600 V |
Conductor | 30 AWG SAE Copper |
Conductor Strands | 364 |
Nominal Insulation Thickness | .060 Inch (1.52 MM) |
Nominal Outside Diameter (+Jacket) | .343 Inch (8.71 MM) |
Approx LBS Per 1K' | 147 |
Temperature Range | -50°C (-58°F) to 105°C (221°F) |
Country of Origin | United States |
