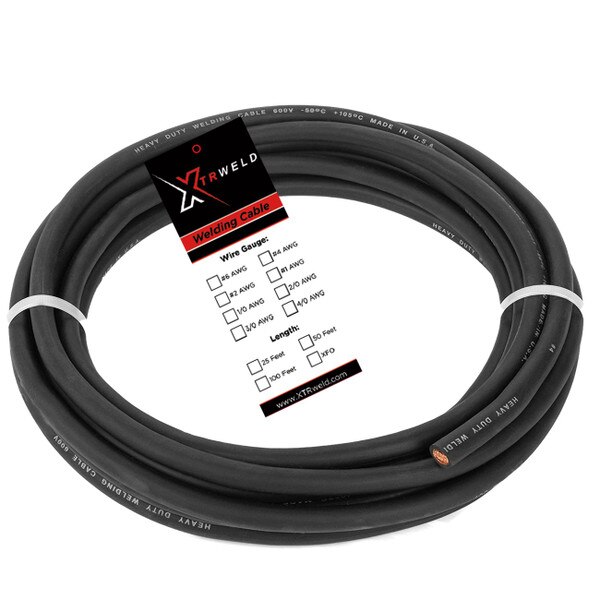

WCSN2B-100CL XTRweld Select Welding Cable, 600V, #2 AWG, 100' Cut Length

SKU: XTRWCSN2B100CL
Back

Highly durable and versatile, the cable is designed for use in stingers/whips, leads, and ground clamp welding assemblies as well as battery applications such as chargers and wire harnesses. XTRweld SELECT welding cable is SAE J1127 (#6 to 250 MCM) and RoHS compliant and manufactured in the USA.

KEY FEATURES

  • Rope-lay, bunch-stranded 30 AWG SAE copper conductor
  • Wrapped paper separator
  • Jacketed with proprietary LSHF EPDM compound
  • Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
Back
AWG Size#2
Voltage Rating600 V
Conductor30 AWG SAE Copper
Conductor Strands624
Nominal Insulation Thickness.060 Inch (1.52 MM)
Nominal Outside Diameter (+Jacket).428 Inch (10.87 MM)
Approx LBS Per 1K'238
Temperature Range-50°C (-58°F) to 105°C (221°F)
Country of OriginUnited States
