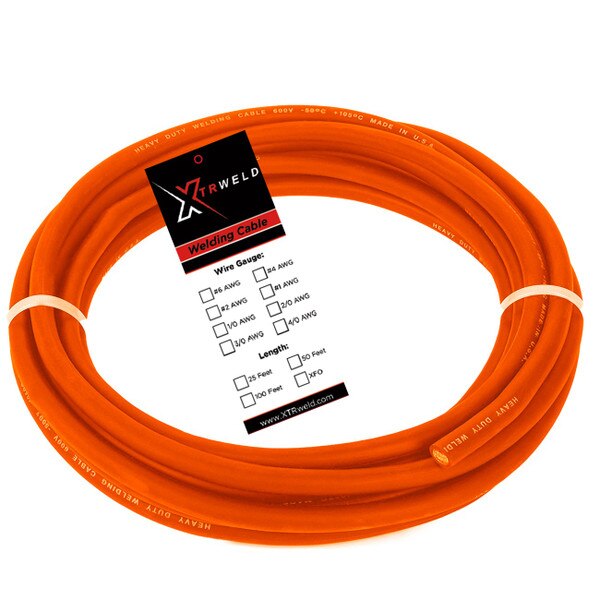

WCSN1XFO-100CL XTRweld Select Welding Cable, XFO, 600V, #1 AWG, 100' Cut Length

SKU: XTRWCSN1XFO100CL
Back

XTRweld SELECT Xtreme Flex Orange commercial welding cable has been completely re-engineered with improved stranding and jacketing for superior flexibility and ease-of-movement within high-flex applications, including pipelines, robotics, and constrained areas. XTRweld SELECT welding cable meets SAE J1127 standards, is RoHS compliant, and manufactured in the USA.

KEY FEATURES

  • Rope-lay, bunch-stranded, ultra-flexible 34 or 36 AWG SAE copper conductor
  • Jacketed with TPE compound
  • Signature vibrant orange jacket with deep black striping
  • Resistant to battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
Back
AWG Size#1
Voltage Rating600 V
Conductor36 AWG SAE Copper
Conductor Strands3,136
Nominal Insulation Thickness.080 Inch (2.03 MM)
Nominal Outside Diameter (+Jacket).498 Inch (12.65 MM)
Approx LBS Per 1K'311
Temperature Range-50°C (-58°F) to 105°C (221°F)
Country of OriginUnited States
Back
Product Information Sheet
