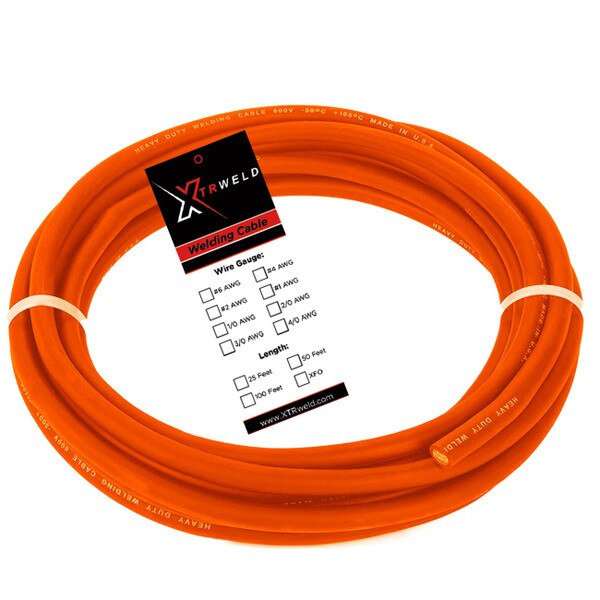

WCS2/0XFO-100CL XTRweld Select Welding Cable, XFO, 600V, 2/0 AWG, 100' Cut Len
XTRweld SELECT Xtreme Flex Orange commercial welding cable has been completely re-engineered with improved stranding and jacketing for superior flexibility and ease-of-movement within high-flex applications, including pipelines, robotics, and constrained areas. XTRweld SELECT welding cable meets SAE J1127 standards, is RoHS compliant, and manufactured in the USA.
KEY FEATURES
- Rope-lay, bunch-stranded, ultra-flexible 34 or 36 AWG SAE copper conductor
- Jacketed with TPE compound
- Signature vibrant orange jacket with deep black striping
- Resistant to battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
AWG Size | 2/0 |
Voltage Rating | 600 V |
Conductor | 34 AWG SAE Copper |
Conductor Strands | 4,949 |
Nominal Insulation Thickness | .080 Inch (2.03 MM) |
Nominal Outside Diameter (+Jacket) | .588 Inch (14.94 MM) |
Approx LBS Per 1K' | 464 |
Temperature Range | -50°C (-58°F) to 105°C (221°F) |
Country of Origin | United States |
