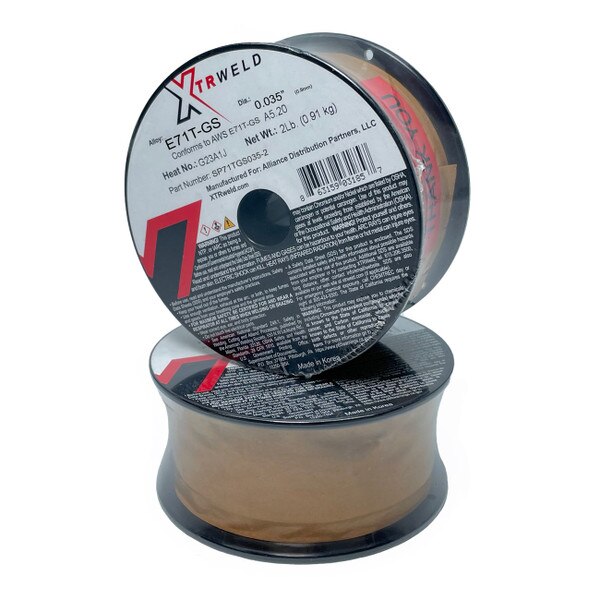

SP71TGS0352 XTRweld E71T-GS Filler Metal, 2 LB, Carbon Steel, 0.035 Inch Dia
E71T-GS is a carbon steel, flux cored electrode for use without an external shielding gas. This electrode is intended for welding thin-gauge carbon steel, ranging from 3/16” to 22 gauge.
Applications
- XTR 71T-GS is intended for single-pass weldments; this product is designed to weld quite effectively over galvanized material and can be used on certain aluminized surfaces as well.
- E71T-GS requires no external gas-shielding and should be welded with DCEN (straight polarity).
- Common for home hobbyists, this versatile welding wire is perfect.
- Not intended for structural steel applications, when application is structural, we suggest E71T-11 or E71T-8 gasless wires.
| Material | Carbon Steel |
| Type | Spooled Wire |
| Diameter (IN) | 0.035 Inch |
| Diameter (MM) | 0.9 MM |
| Amperage | 150 A |
| Voltage | 17 V |
| Speed | 205 IPM |
| Stickout | 1/2 Inch |
| Tensile Strength | 86000 psi (70000 psi AWS Spec.) |
| Yield Strength | 74000 psi |
| Elongation in 2 Inch | 0.26 |
| Welding Positions | Flat, Horizontal, Vertical Up, Vertical Down, Overhead |
| Approvals | AWS A5.20 |
