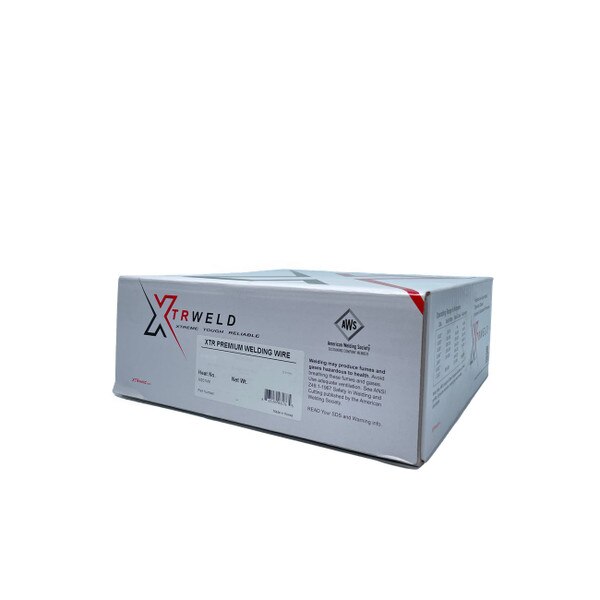

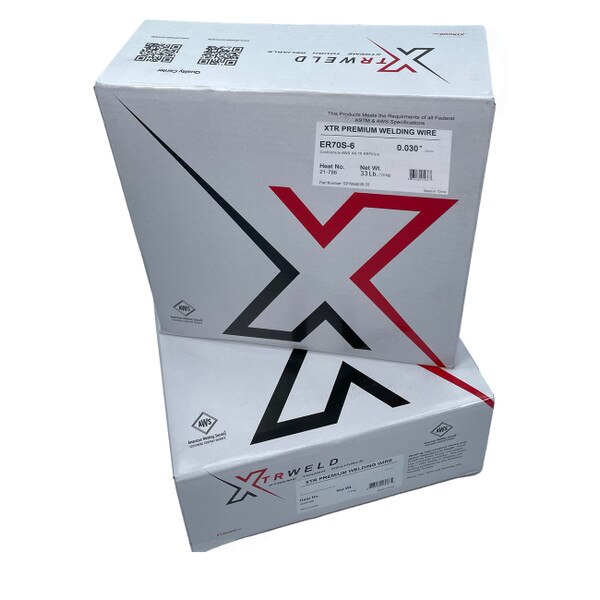

SP70S603533 XTRweld ER70S-6 Filler Metal, 33 LB, Steel, 0.035 Inch Dia
ER70S-6 is the most used copper coated steel welding wire, this is because of its versatility and ability to be welded in single or multi-pass welding applications. Commonly referred to as just “S-6”, it is easy to weld with, boasting a very high combination of deoxidizers (Manganese and Silicon) allowing it to be used in almost every weld shop. Excellent puddle fluidity and wetting action with little post weld work required.
Applications
- XTR ER70S-6 is well suited for many applications, commonly root pass pipe welding, butt, and fillet welding of sheet and plate in a variety of thickness’s as well as many other carbon steel repair and fabrication.
| Material | Steel (Manganese and Silicon) |
| Type | Spooled Wire |
| Diameter (IN) | 0.035 Inch |
| Diameter (MM) | 0.9 MM |
| Finish | Copper |
| Amperage | 60 to 195 A |
| Voltage | 16 to 22 V |
| Speed | 150 to 330 IPM |
| Flow Rate | 20 to 30 CFH |
| Stickout | 3/8 to 1/2 Inch |
| Tensile Strength | 89500 psi (70000 psi AWS Spec.) |
| Yield Strength | 75100 psi (58000 psi AWS Spec.) |
| Elongation in 2 Inch | 29.5% (22% AWS Spec.) |
| Charpy V-Notch | 57-65 (20 ftl-bf @ -20°F AWS Spec.) |
| Welding Positions | Flat, Horizontal, Vertical Up, Vertical Down, Overhead |
