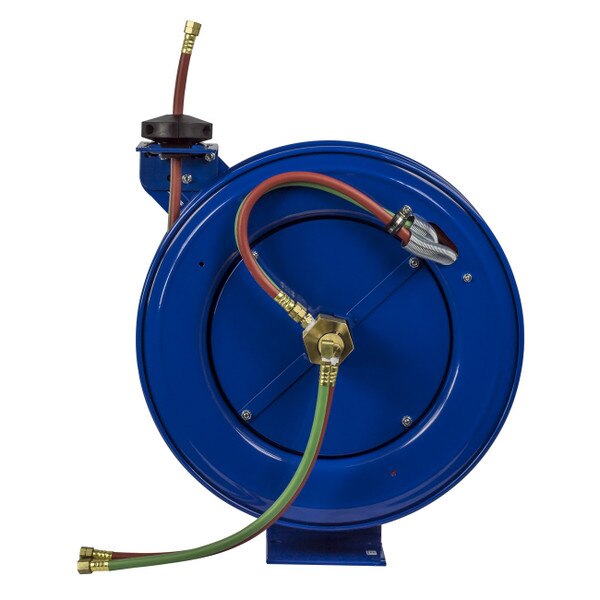

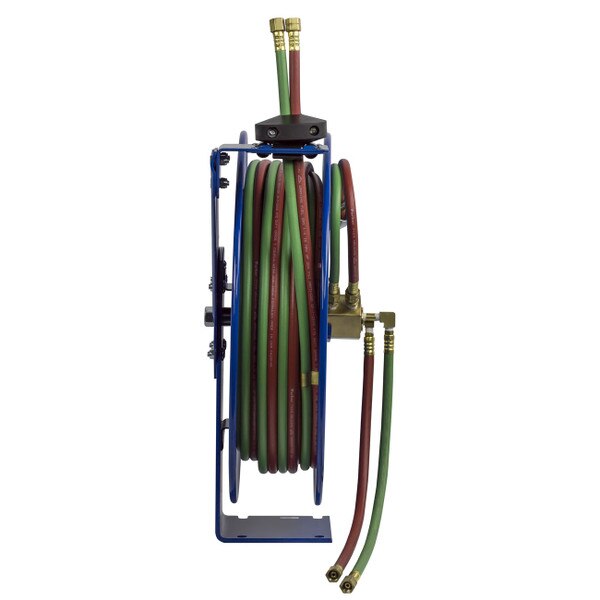

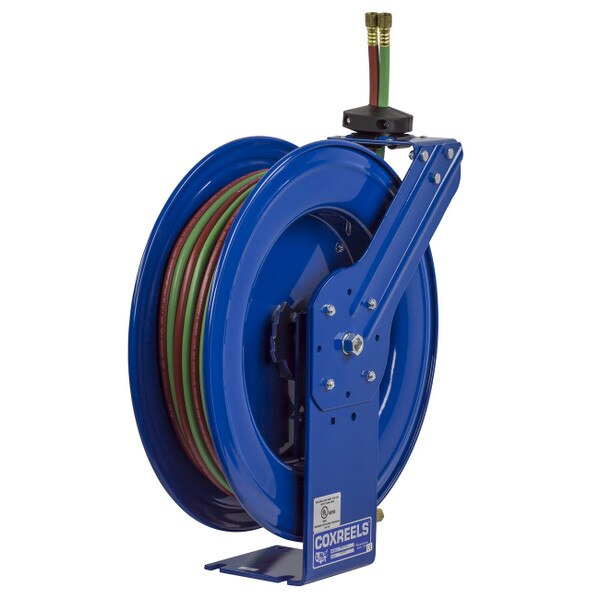

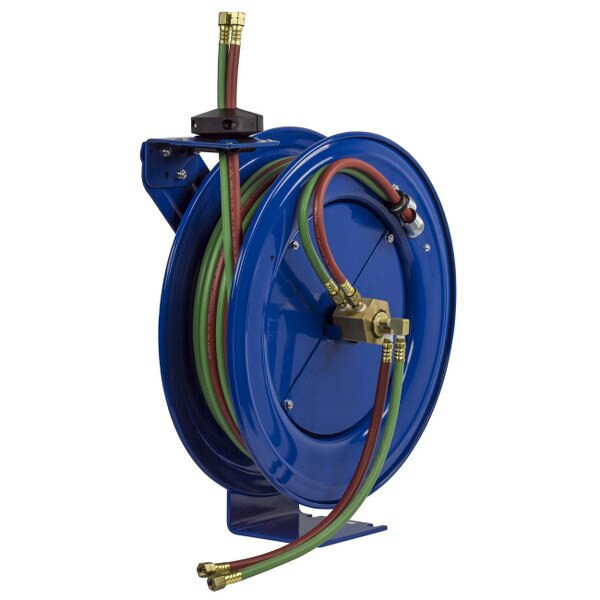

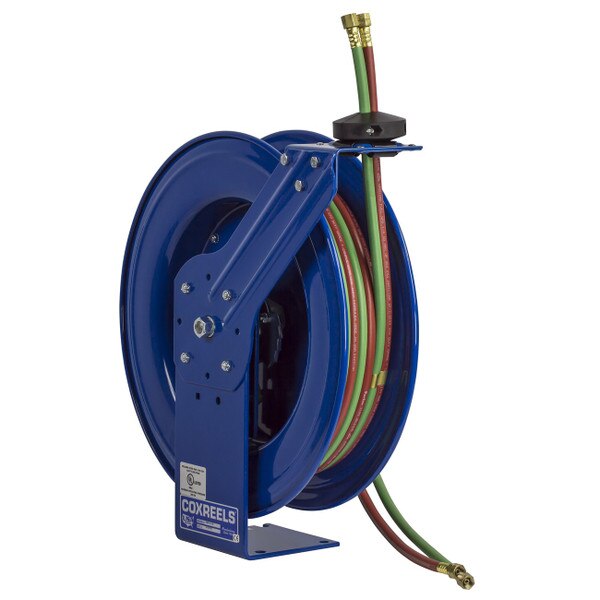

SHW-N-150 Coxreels SHW Hose Reel, 1/4 Inch ID, 50 ft Hose L, Steel, Spring

SKU: CXRSHWN150

COXREELS® P-W and SHW Series spring driven “Welding” hose reels are the ideal solution for managing bulky twin line welding hose. The P-W Series, like the P Series, is more compact in size and shares the reputation for long lasting performance. The SHW Series has a larger chassis and frame to accommodate longer lengths of welding hose and Coxreels’ original Super Hub dual axle support system for increased stability during operation, less vibration and greater structural integrity.

KEY FEATURES

  • WELDING GAS SWIVEL - External 90? full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, oxygen-acetylene welding hose, and sturdy permanently lubricated precision bearings.
Inside Diameter 1/4 Inch
Hose Length 50 ft
Drive Type Spring
Max Pressure 200 psi
Material Steel
Finish Powder Coated
Mounting Floor, Wall, Ceiling, Bench and Vehicles
Reel Design Single Pedestal
Max Temperature Range 150° F
Reel Inlet 1/4 Inch (F) NPT
Hose Ends 1/4 Inch (M) NPT
Seal Type Viton
Swivel Material Brass
Hose Material EPDM
Mount Hole 0.5 Inch
Hose Included Yes
Warranty 24 months Limited Parts / No Labor
Item Height 21.25 Inch
Item Width 10.25 Inch
Item Length 19.5 Inch
Bearings 1 Inch Permanently Lubricated Precision Bearings
