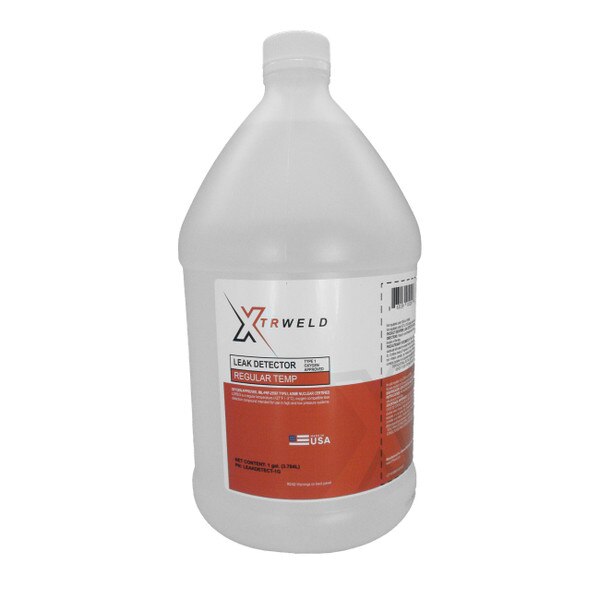

LEAKDETECT1G XTRweld Leak Detection Compound, Regular Temp, Type I, 1gal
Meeting military, ASTM and ASME specifications and standards, these products do not contain halogen or chloride compounds, and the non-corrosive nature of the formulas allow for use on all types of surfaces, including aluminum, steel, copper, and brass. This biodegradable surfactant-based product is not a soap (a material not generally approved for oxygen systems due to its mineral oil, vegetable, animal oil, or fats content).
Features
- Ready to use formula saves time and money.
- Allows for direct application of product, protects expensive equipment being tested, does not leave messy residue that can attract dirt, or lead to later leak blockages.
- Also available in larger containers for bulk savings, along with pour spouts and drum pumps for ease of use from larger containers.
Applications
- LEAKDETECT-1G is a regular temperature (+27°F / - 3°C), oxygen compatible leak detection compound intended for use in high and low pressure systems.
Composition & Packaging
- Liquid product, free from sediment and suspended matter, that is miscible with water in all proportions. Product does not contain mineral oil, vegetable oil, animal oil or fats.
- Does not contain materials that will ignite or explode when in contact with liquid or gaseous oxygen.
- Does not contain materials that will act as primary skin irritants, skin sensitizers or produce any other dermatosis.
- Does not contain ketones, aldehydes, or alcohols as components in the formulation.
Container Type | Round Jug |
Container Size | 1 gal |
Type | Type I, Regular Temperature |
Sulphur | < 0.5 ug/gram |
Fluoride | < 0.5 ug/gram |
Chloride | < 75 ug/gram |
Foreign Matter | Clear & Free From Suspended Matter/Sediment |
Odor | No Objectionable Odor |
PH Value | 7 (+/-0.5) Neutral Range |
Flammability | Non-Flammable |
Leak Detection Verification | Immediate Foaming is Observed |
Foaming Ability | Initial > 145 mm Final > 130 mm |
Freezing Point | 27 °F |
Residue | <0.5% by Weight |
Compatibility with Oxygen | Yes |
Mold Growth | Yes |
Stress Crack Corrosion on Brass Alloys | No Stress Crack Corrosion |
Non-Corrosive | Yes |
Standard | MIL-PRF-25567E (sec 4.2.2.1), ASTM D1292, MIL-PRF-25567E (sec 4.2.2.3), ASTM D92, MIL-PRF-25567E (sec 4.2.2.5), ASTM D1173, ASTM D1177, MIL-PRF-25567E (sec 4.2.2.8), MIL-PRF-25567E (sec 4.2.2.9), MIL-PRF-25567E (sec 4.2.2.10), MIL-PRF-25567E (sec 4.2.2.11), ASTM D-129 / D-516 (B), ASTM D-808 / D-1179 (B), ASTM D-808 / D-512 (C), ASTM G186 |
Shelf Life | 5 years |
Country of Origin | United States |
