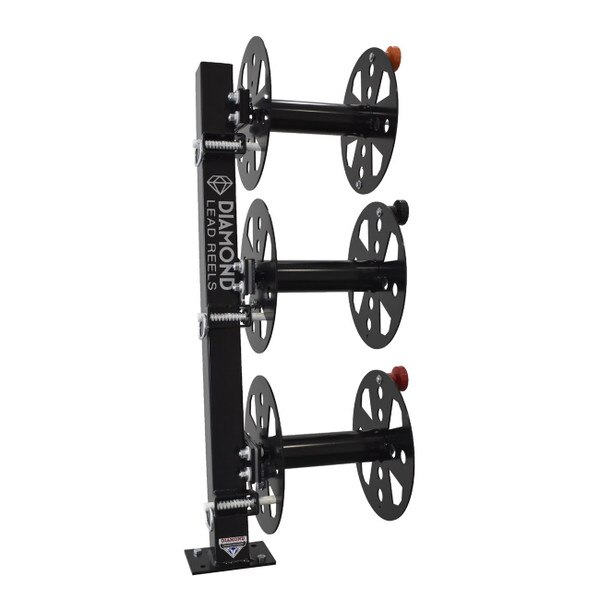

FBT12GRY Diamond Lead Reels , HD, 12 ", Gray, Fixed Base Triple
KEY FEATURES
- Stays connected to the welder at all times. “Live Reel Setup”
- Designed with 3 spools: Store your welding leads on the bottom 2 reels. Store your remote, extension cord, shielding gas hose, or oxy/acet. hose on the top reel. Top Spool is NOT a live spool.
- Comes standard with 600 Amp capacity.
- 1/2” terminal connections.
- Vented circle design allows for free air flow over your lead to aid in cooling.
- Heavy-duty manual friction brake is adjustable, allows the user to set tension and prevents free spooling of leads during roll out.
- * DLR NEW* proprietary platinum pull pin.
- Reel leans back at a 7 degree angle designed to lean with most truck cabs to keep your side mirrors clear of obstructions.
- Reels are rebuildable with full line of replacement parts.
Construction
- Heavy-duty, all-steel construction
- All hardware is ZINC coated Grade 8
- Ball bearing spools
- Powder coated for a lasting finish
| Type | Heavy-Duty |
| Reel Size | 12 Inch |
| Cable Capacity | 200 ft of 1/0 Cable 175 ft of 2/0 Cable |
| Color | Gray |
| Material | Steel |
| Hardware Material | ZINC Coated Grade 8 |
| Terminal Connection | 1/2 in |
| Finish | Powder Coated |
| Base Type | Triple Fixed |
| Spool Type | Ball Bearing |
| Height | 37.75 Inch |
| Width | 18 Inch |
| Depth | 13 Inch |
| AMP Capacity | 600 A |
| Pack | 1 Each |
