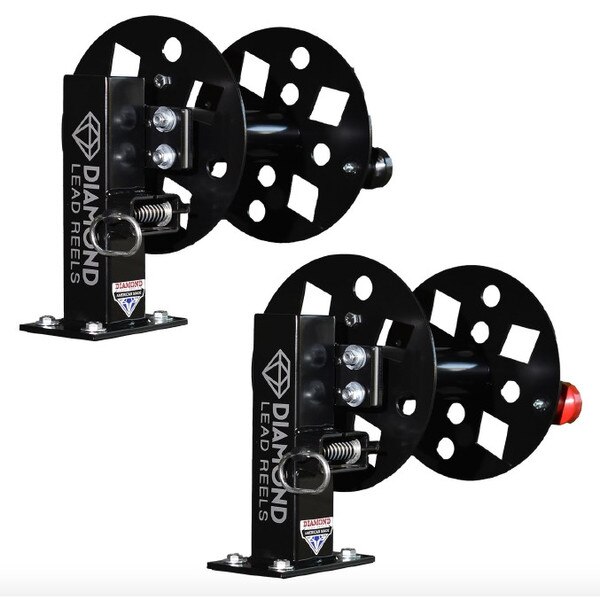

FBS-SET12RED Diamond Lead Reels , HD, 12 ", Red, Fixed Base Set
KEY FEATURES
- Stays connected to the welder at all times. “Live Reel Setup”
- Comes standard with 600 Amp capacity.
- 1/2” terminal connections.
- Vented circle design allows for free air flow over your lead to aid in cooling.
- Heavy-duty manual friction brake is adjustable, allows the user to set tension and prevents free spooling of leads during roll out.
- *DLR NEW* proprietary platinum pull pin.
- Reels are rebuildable with full line of replacement parts.
Construction
- Heavy-duty, All-steel construction
- All hardware is ZINC coated
- Dual ball bearing spools
- Powder coated finish
| Type | Heavy-Duty, Pair of Single Reel |
| Reel Size | 12 Inch |
| Cable Capacity | 200 ft of 1/0 Cable 175 ft of 2/0 Cable |
| Color | Red |
| Material | Steel |
| Hardware Material | ZINC Coated |
| Terminal Connection | 1/2 in |
| Finish | Powder Coated |
| Spool Type | Dual Ball Bearing |
| Height | 14.25 Inch |
| Width | 18 Inch |
| Depth | 11.5 Inch |
| AMP Capacity | 600 A |
| Pack | 1 Each |
