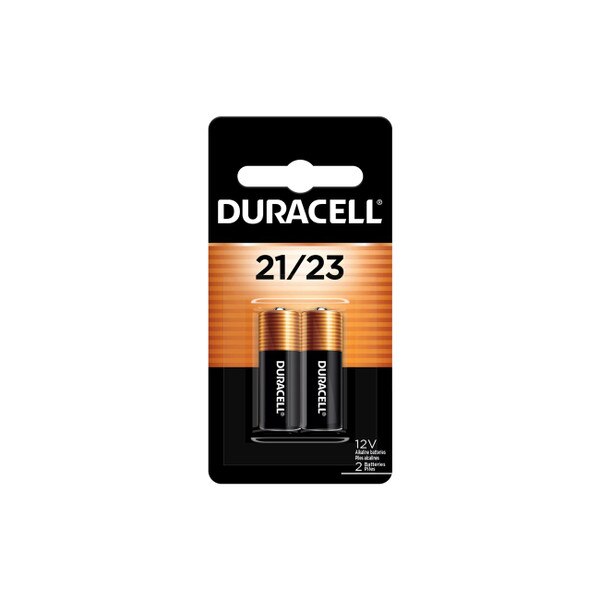

MN21B2PK09 Duracell, Specialty Battery, MN21/A23, 12 V, Alkaline, 2PK

SKU: DURMN21B2PK09
Back

Long-lasting Power, Guaranteed. Duracell is the #1 trusted brand, so you know it is a battery you can trust

  • Chemical System: Alkaline-Manganese Dioxide (Zn/MnO2)
  • Replaces 23A, V23GA, MS21, L1028F, LRV08, A23
  • High voltage response, stable during most of the lifetime of the application
  • Reliable Performance
  • Wide operating temperature range
  • Low self-discharge with long operating life (<10% after 1 year of storage at + 20 °C)
  • Excellent resistance to corrosion
  • Designed to meet all major quality, safety and environment standards: Safety: IEC 60086-5, Battery Directive 2006/66/EC, RoHS and REACH compliance, ISO 9001, Duracell World Class Continuous Program

    • Applications

  • Car alarm
  • Key fob
  • GPS tracker
  • Child locator
  • Remote controller

    • Typical Applications

  • Automobile remote controller
  • Car burglar alarm remote
  • Doorbells
  • Roll-up Door remote control
  • Electric appliance remote control
  • Flashlights
  • Toys

    • Equivalent To

    A23, MN21, 23AF, 23AE, V23GA
    Back
    ModelMN21/A23
    Battery Voltage12 V
    Battery ChemistryAlkaline
    Battery Capacity60 mAh
    AC Impedance22 ? @ 1 khz
    Terminal TypeFlat
    Diameter10.3 MM
    Height28.5 MM
    Min. Storage Temperature41 °F
    Max. Storage Temperature86 °F
    Min. Operating Temperature14 °F
    Max. Operating Temperature140 °F
    ApprovalsIEC 8LR932
    Volume0.14 Cu in
    Weight0.02 LB
    Package Quantity2/Pack
    Country of OriginChina
