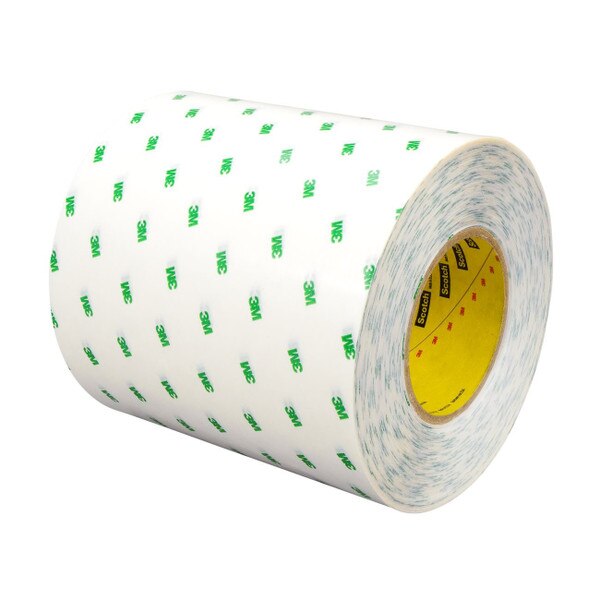

7000049537 3M™ 9085 Adhesive Transfer Tape, Ultra High Temperature, Transparent
Our 3M™ Ultra High Temperature Adhesive Transfer Tape 9085 offers higher peel strength than most other acrylic formulations and exceptional shear strength even at elevated temperatures. The high performance and low outgassing adhesive system provides heat resistance in high temperature environment, including 540 °F (280 °C) in the short term.
KEY FEATURES
- Low outgassing properties benefit electronic and automotive industries
- Transparent, double sided, 5 mil (0.13 mm) adhesive transfer tape offers a thin profile combined with our ultra high temperature acrylic adhesive for a long-lasting bond
- 55# densified kraft brown paper release liner printed with green 3M™ logo
- High peel and shear strength creates bonds suitable for extreme conditions
- Outstanding UV and chemical resistance for performance longevity
- Short term temperature tolerance of up to 540 °F (280 °C)
- Adhesive offers excellent heat resistance in high temperature environments such as lead free solder reflow
| Type | Ultra High Temperature |
| Color | Transparent |
| Width | 1/4 Inch |
| Length | 60 yd |
| Adhesive Type | Acrylic |
| Face Side Adhesive Type | Ultra High Temperature Acrylic |
| Thickness | 5 mil |
| Min. Temperature Rating | -40 °F |
| Max. Temperature Rating | 550 °F |
| Primary Liner Thickness | 3.2 mil |
| Primary Liner | 55# Densified Kraft Paper |
| Primary Liner Color | White |
| Face Side Adhesive Thickness | 5 mil |
| Total Tape Thickness without Liner | 5 mil |
