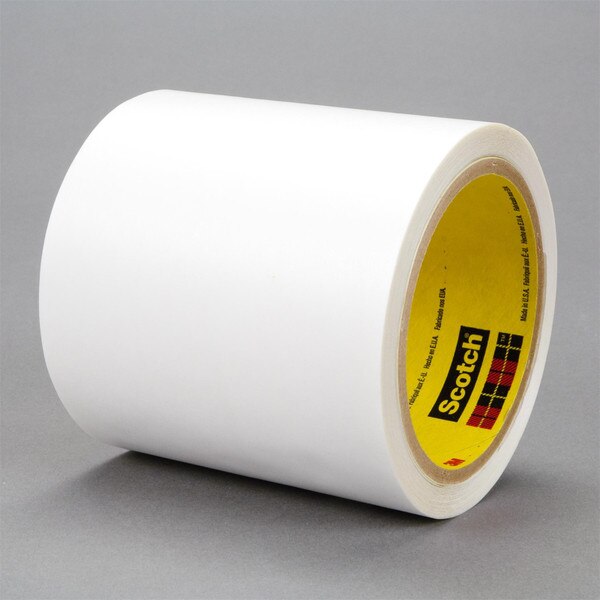

7000049218 3M™ 9485EK Adhesive Transfer Tape, Transparent, 3/4 Inch W, 180 yd L
3M™ Adhesive Transfer Tape 9485EK leverages the power of 3M™ High Performance Acrylic Adhesive 350 and is mounted on a white, 78 lb. extensible kraft paper liner for ease of processing. This transfer tape is an excellent solution bonding high and low surface energy materials. It can also be used for joining materials that have rougher surfaces.
KEY FEATURES
- 5.0 mils (.127 mm) thick tape provides high bond to low surface energy substrates and powder coated paints
- 78 lb. extensible kraft paper liner for additional strength in narrow width automated dispensing applications
- Excellent chemical resistance and shear and peel strength even at elevated temperatures
- Designed for short term temperature exposure up to 450°F (232°C) and long term 300°F (149°C)
- Adhesive is fiber reinforced for roll stability in narrow widths and to resist oozing
- Low odor for improved working environment
| Color | Transparent |
| Width | 3/4 Inch |
| Length | 180 yd |
| Adhesive Type | Acrylic |
| Face Side Adhesive Type | High Performance Acrylic |
| Thickness | 5 mil |
| Min. Temperature Rating | -40 °F |
| Max. Temperature Rating | 450 °F |
| Primary Liner Thickness | 6 mil |
| Primary Liner | 78# Extensible Polycoated Kraft Paper |
| Primary Liner Color | White |
| Face Side Adhesive Thickness | 5 mil |
| Total Tape Thickness without Liner | 5 mil |
