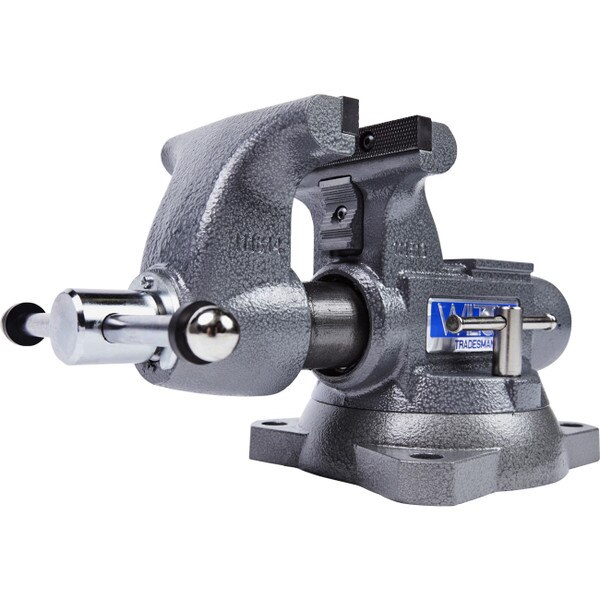

28806 Wilton Tradesman 1755 5-1/2" Vise

SKU: WIL28806

The Tradesman round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Tradesman round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Tradesman vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

KEY FEATURES

  • Enclosed design keeps lubrication in and contaminants out for a lifetime of smooth operation
  • Redesigned spindle assembly improves overall product life and durability
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Machined steel serrated jaws with phosphate coating provide increased durability and an extended life of use
  • Reversible jaw inserts are serrated on one side for extra grip and smooth on the other to prevent marring on softer surfaces
  • 60,000 PSI ductile iron body, jaw and base is virtually indestructible with 2X the strength of grey cast iron
  • Longer spindle nut ensures smooth movement and a stronger straight-line pull
  • Large anvil designed to take a beating while forming and shaping materials
Jaw Depth (In.)1/2
Number of Mounting Points4
Throat Depth (In.)3-3/4
Jaw Height (In.)3/4
Type of Base360 Degree Swivel
Jaw Width (In.)5-1/2
Opening Capacity Max (In.)5
Pipe Jaw Capacity (In.)1/4 - 3
