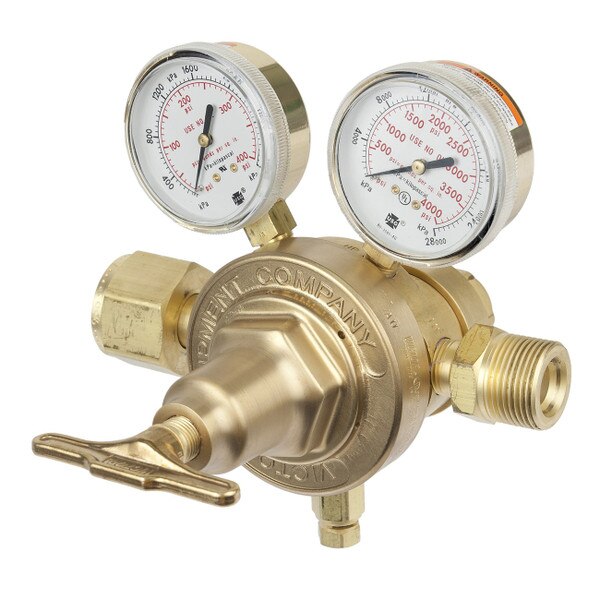

0780-0803 Victor® Regulator, Extra High Capacity, Single Stage
Victor® SR 702 Series Single Stage Heavy-Duty Methane/Hydrogen Manifold Regulator offers 10 - 200 psig delivery range. Extra high capacity regulator has 1"-11 1/2 NPS F manifold connection and provides wide range of flow capabilities.
KEY FEATURES
- Machined brass body and housing cap
- Cartridge type seat assembly with PCTFE seat
- Brass piston actuation
- Delrin cap bushing for smooth adjustments
- External adjustable relief valve on F and G range model
- Sintered inlet filter bronze
- Wide range flow capabilities, wide range of pressure delivery
| Type | Extra High Capacity |
| Number of Stages | Single Stage |
| Gas Type | Hydrogen; Methane |
| Max. Outlet Pressure | 200 psig |
| Inlet Connection | CGA-997 |
| Outlet Type | 1-11 1/2 Female NPS |
| Gauge Diameter | 2 1/2 Inch |
| Model | SR702 |
| Country of Origin | United States |
| Pack | 1 Each |
