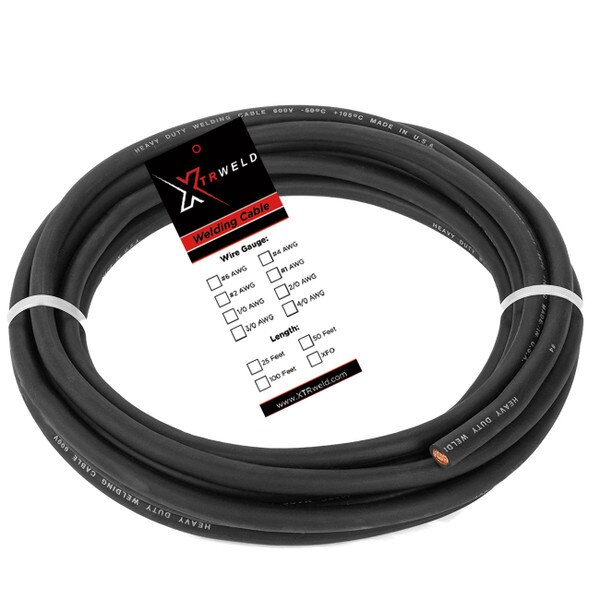

WCSN6B-50CL XTRweld Select Welding Cable, 600V, #6 AWG, 50' Cut Length
Highly durable and versatile, the cable is designed for use in stingers/whips, leads, and ground clamp welding assemblies as well as battery applications such as chargers and wire harnesses. XTRweld SELECT welding cable is SAE J1127 (#6 to 250 MCM) and RoHS compliant and manufactured in the USA.
KEY FEATURES
- Rope-lay, bunch-stranded 30 AWG SAE copper conductor
- Wrapped paper separator
- Jacketed with proprietary LSHF EPDM compound
- Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
| AWG Size | #6 |
| Voltage Rating | 600 V |
| Conductor | 30 AWG SAE Copper |
| Conductor Strands | 260 |
| Nominal Insulation Thickness | .060 Inch (1.52 MM) |
| Nominal Outside Diameter (+Jacket) | .308 Inch (7.82 MM) |
| Approx LBS Per 1K' | 108 |
| Temperature Range | -50°C (-58°F) to 105°C (221°F) |
| Country of Origin | United States |
