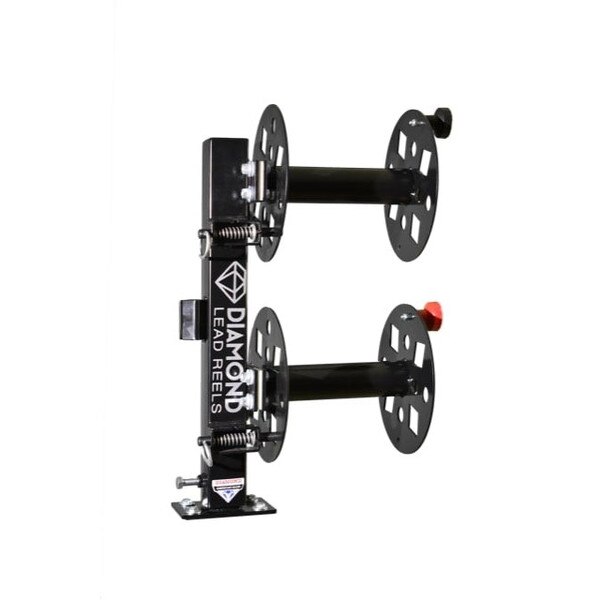

SBD12BLK Diamond Lead Reels , HD, 12 ", Black, Swivel Base



  • Stays connected to the welder at all times. “Live Reel Setup”
  • Swivel base allows for the reel to be turned 360 degrees in any direction of work.
  • Comes standard with 600 Amp capacity.
  • 1/2” terminal connections.
  • Vented circle design allows for free air flow over your lead to aid in cooling.
  • Heavy-duty manual friction brake is adjustable, allows the user to set tension and prevents free spooling of leads during roll out.
  • * DLR NEW* proprietary platinum pull pin.
  • Reels are rebuildable with full line of replacement parts.


  • Heavy-duty, All-steel construction
  • All hardware is ZINC coated
  • Dual ball bearing spools
  • Powder coated finish
Reel Size12 Inch
Cable Capacity200 ft of 1/0 Cable
175 ft of 2/0 Cable
Hardware MaterialZINC Coated
Terminal Connection1/2 in
FinishPowder Coated
Base TypeSwivel
Spool TypeDual Ball Bearing
Height27.25 Inch
Width18 Inch
Depth11.5 Inch
AMP Capacity600 A
WarrantyLifetime Warranty On Steel Construction and Workmanship, 1 Year Warranty On Spools, Bearings and Pins.
Pack1 Each
