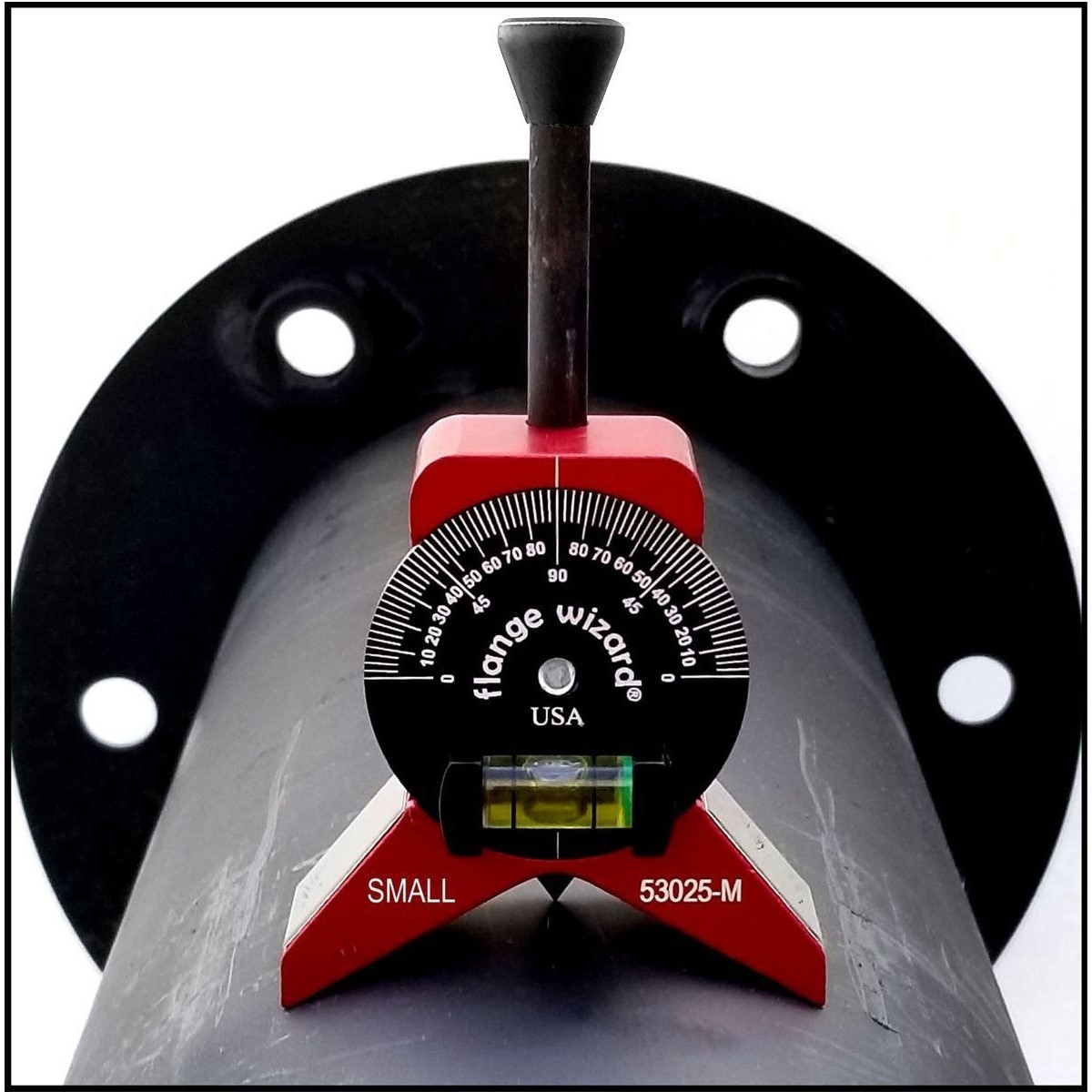

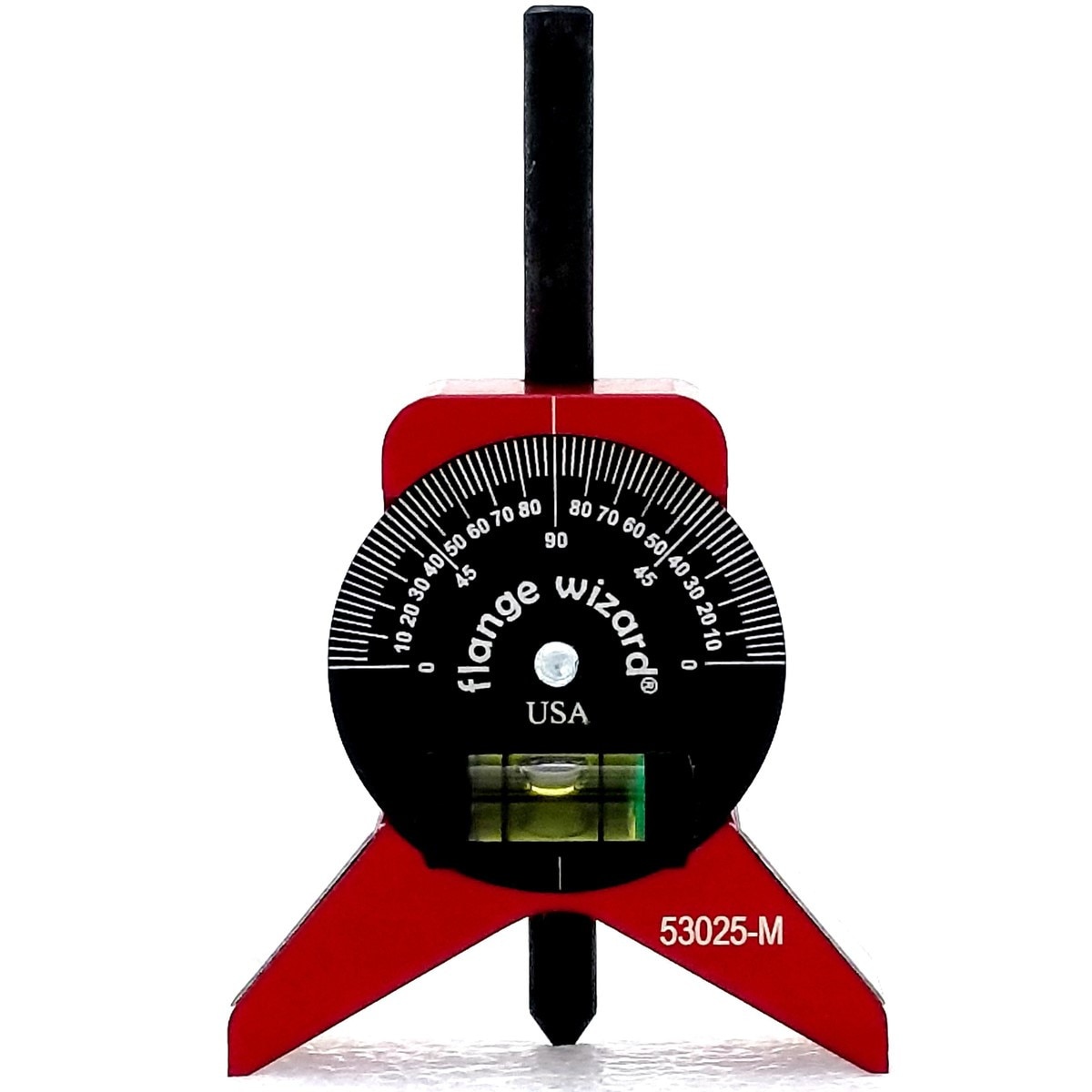

53025-M Flange Wizard Magnetic Centering Head, Small

The 53025-M Small Magnetic Centering Head (for pipes 1” and larger) is designed for the person who works with smaller diameter pipe. Fire protection, fence and gate builders, livestock pens and corrals, and various alignment jobs in the automotive field are a few of the many uses.

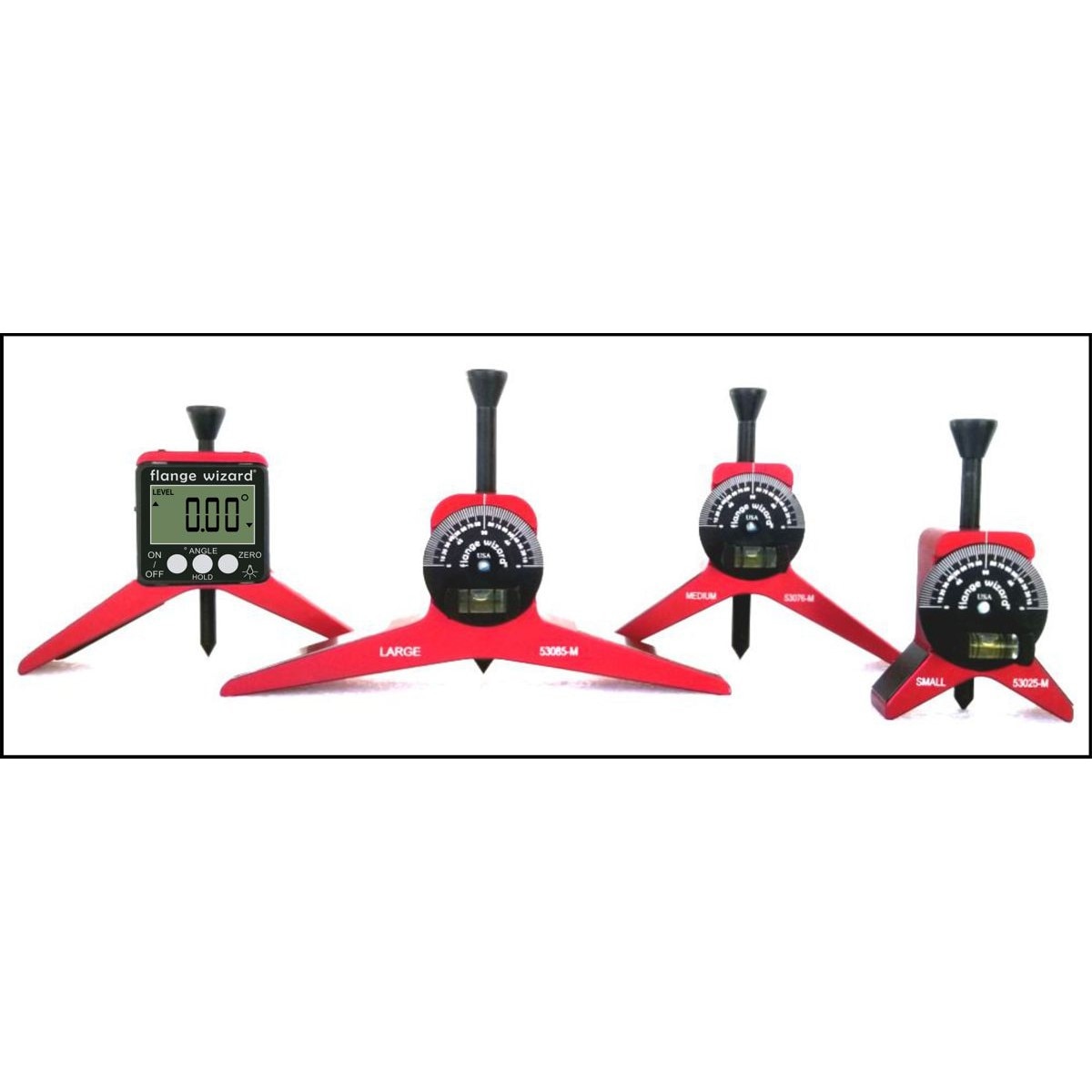

• All four tools are machined from quality aluminum material then anodized for lasting protection.
• They have a one piece “Y” shaped body design with 2-1/2° increment dial that turns 360°.
• The degree dial has a built-in vial for leveling the tool at various angles.
• The NEW hardened center punch (with Safety head) marks your set position by tapping with a hammer (vial and center punch are replaceable for lasting service).
• Magnets in the legs (in all four tools) will free up the users hands for a safer and more accurate layout mark.
• These tools are used to establish a center line or to find any angle around the circumference of a pipe or tank.
